Bicycle Brake Rotor Manufacturer
QUNKE brake rotor range covering standard stainless-steel rotors, heavy-duty 2.3 mm / 2.8 mm rotors, carbon-fiber-carrier floating rotors, 6-bolt mounting patterns and Center Lock configurations.
Confirmed product data below is intended for B2B sourcing and RFQ review. Custom colors, branding and packaging can be reviewed by order.
Confirmed Material & Mounting Standards
Braking Track Material
All confirmed braking tracks use 2Cr13 stainless steel (SUS420 series).
6-Bolt Hardware
6-bolt rotors are supplied with 6 hex-socket rotor bolts and an Allen key.
Center Lock Structure
Center Lock rotors have a dedicated lock base pressed into the rotor body. A dedicated lock cover is supplied as an accessory.
Mounting Patterns
44 mm, 54 mm and 68 mm are different 6-bolt mounting patterns. 54/68 mm versions are not interchangeable with standard 44 mm mounting.
Brake Rotor Product Views
Representative QUNKE product photos for structure, finish and batch-production reference.

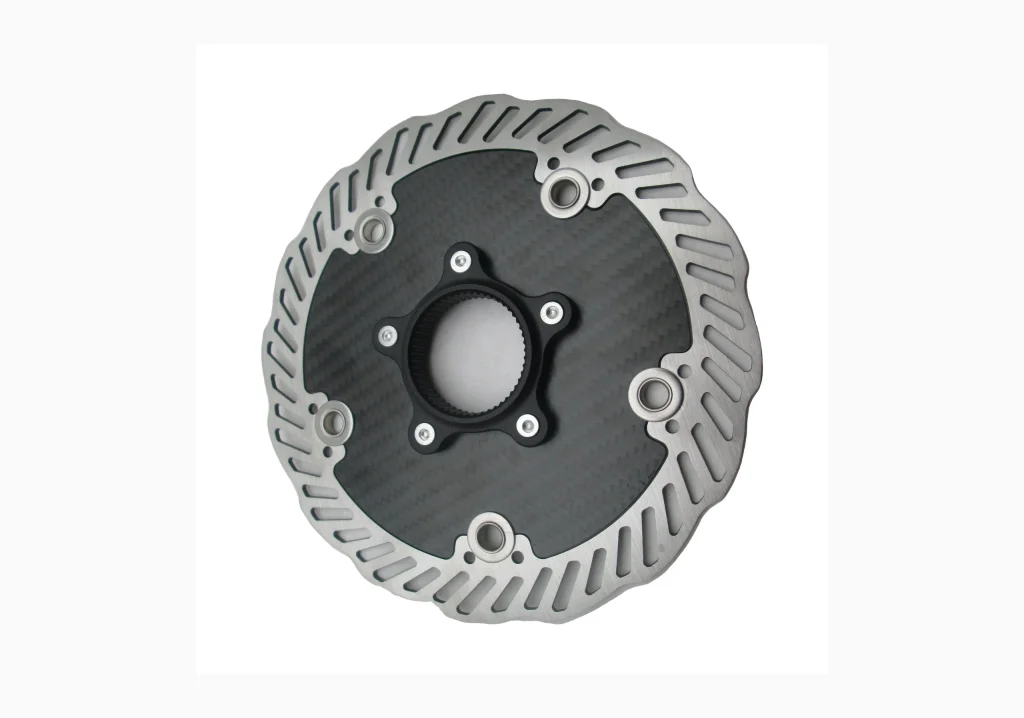

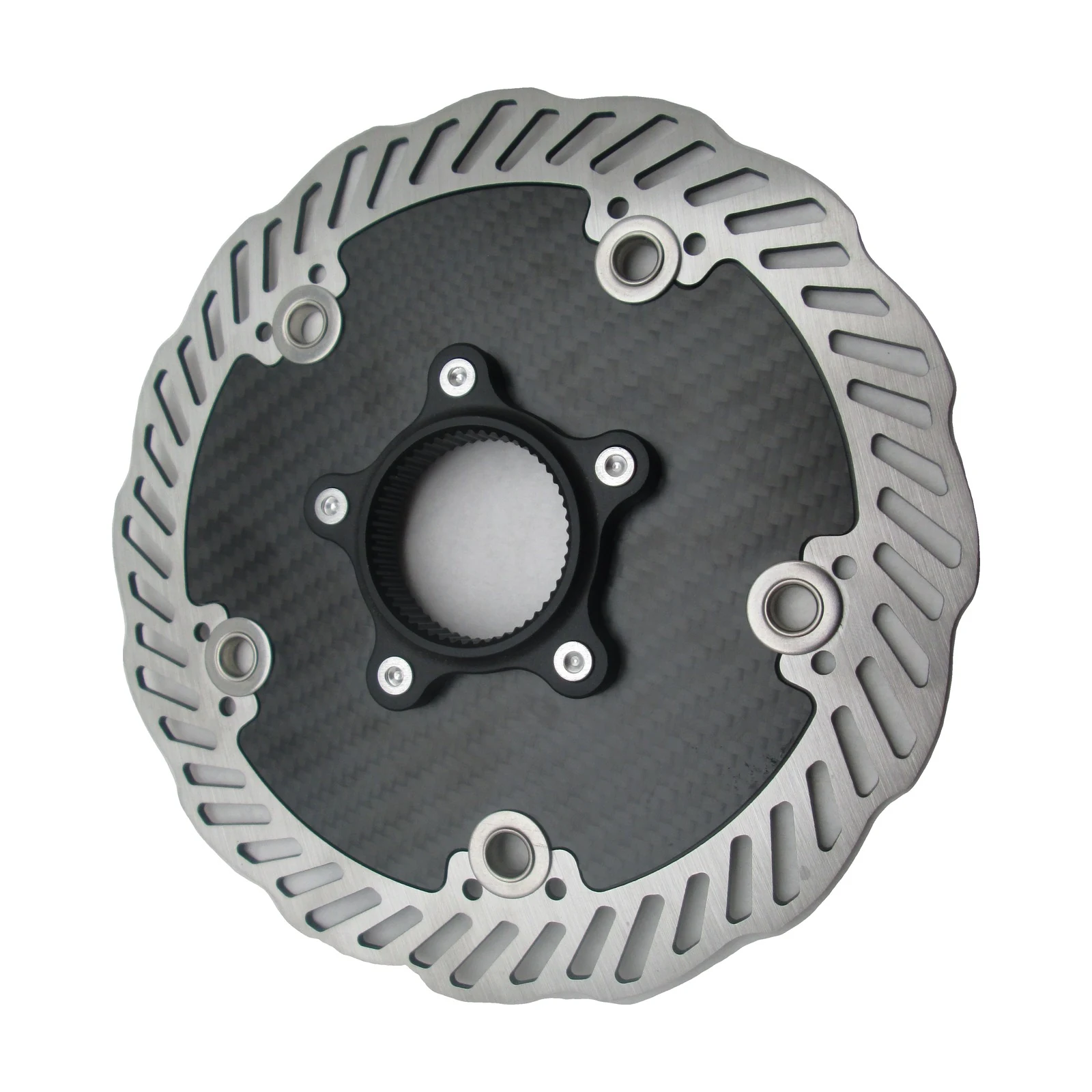

Center Lock Carbon-Fiber Carrier
Front product view with carbon-fiber carrier and integrated Center Lock base.

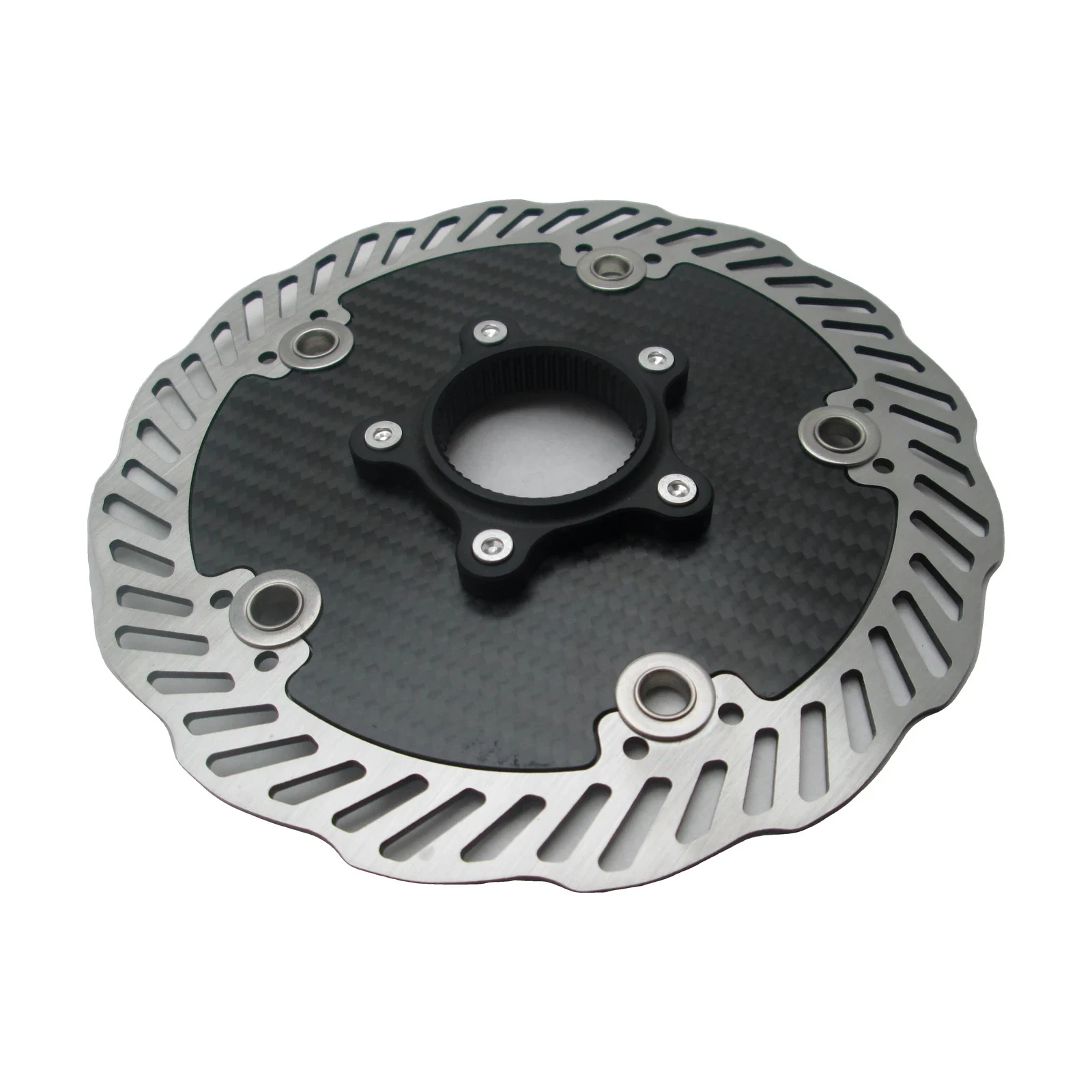

Center Lock Product View
Second product view for Center Lock rotor structure and finish reference.

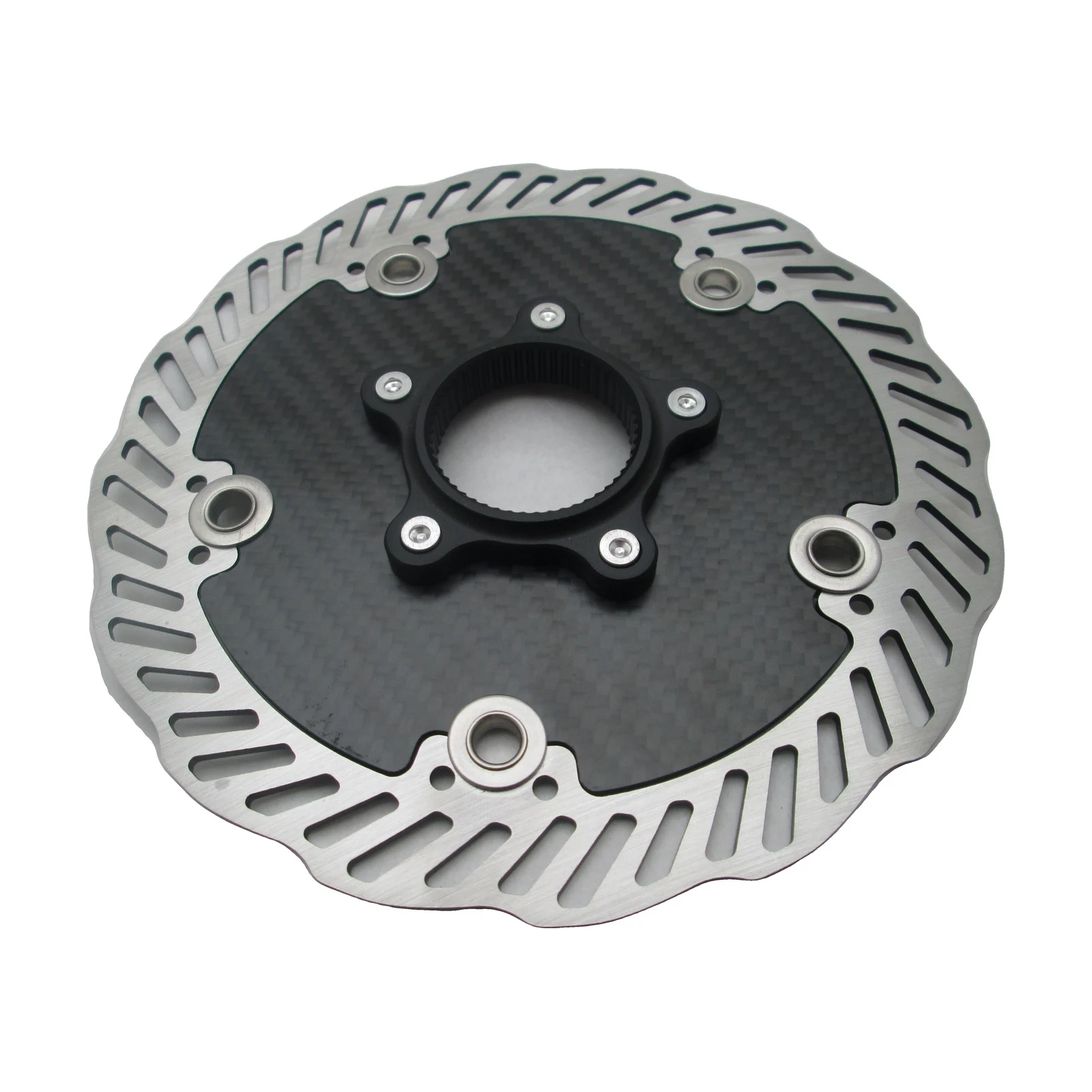

Center Lock Detail View
Angled product view showing braking track, carbon-fiber carrier and Center Lock structure.
Carbon-Fiber Carrier Floating Rotors
Product photo note: Center Lock photos below are real QUNKE product views. Where exact A/B/size mapping is still being verified, the image is marked as a series reference rather than an exact SKU claim.
| Product Image | SKU | Product | Mount | Thickness | Construction | Weight |
|---|---|---|---|---|---|---|
|
Photo pending
SKU confirmation |
FR-CF-140-6B | 140 mm closed-panel floating rotor | 6-bolt / 44 mm | 1.8 mm | 2Cr13 track + carbon-fiber closed-panel carrier | 93 g |
|
Photo pending
SKU confirmation |
FR-CF-160-6B | 160 mm closed-panel floating rotor | 6-bolt / 44 mm | 1.8 mm | 2Cr13 track + carbon-fiber closed-panel carrier | 122 g |
|
Photo pending
SKU confirmation |
FR-CF-180-6B | 180 mm closed-panel floating rotor | 6-bolt / 44 mm | 1.8 mm | 2Cr13 track + carbon-fiber closed-panel carrier | 154 g |
 140 mm Center Lock reference |
FR-CF-140-CL | 140 mm closed-panel floating rotor | Center Lock | 1.8 mm | 2Cr13 track + carbon-fiber closed-panel carrier | 117 g |
| Series reference |
FR-CF-160-CL-A | 160 mm Center Lock Version A | Center Lock | 1.8 mm | Different outer braking-track pattern | 148 g |
| Series reference |
FR-CF-160-CL-B | 160 mm Center Lock Version B | Center Lock | 1.8 mm | Different outer braking-track pattern | 166 g |
| Series reference |
FR-CF-180-CL | 180 mm closed-panel floating rotor | Center Lock | 1.8 mm | 2Cr13 track + carbon-fiber closed-panel carrier | 192 g |
|
Photo pending
SKU confirmation |
FR-CF-160-6B-CI | 160 mm carbon-spoke floating rotor | 6-bolt / 44 mm | 1.8 mm | 2Cr13 track + carbon-fiber spoke carrier | 124 g |
|
Photo pending
SKU confirmation |
FR-CS-160-6B | 160 mm carbon-spoke floating rotor | 6-bolt / 44 mm | 1.8 mm | 2Cr13 track + carbon-fiber spoke carrier | Approx. 116 g |
|
Photo pending
SKU confirmation |
FR-CS-180-6B | 180 mm carbon-spoke floating rotor | 6-bolt / 44 mm | 1.8 mm | 2Cr13 track + carbon-fiber spoke carrier | Approx. 140 g |
|
Photo pending
SKU confirmation |
FR-CS-160-CI | 160 mm full-carbon closed-panel floating rotor | 6-bolt / 44 mm | 1.8 mm | 2Cr13 track + carbon-fiber closed-panel carrier | 116 g |
|
Photo pending
SKU confirmation |
FR-CS-180-CI | 180 mm full-carbon closed-panel floating rotor | 6-bolt / 44 mm | 1.8 mm | 2Cr13 track + carbon-fiber closed-panel carrier | 140 g |
Color editions: FR-CF-140-6B-C, FR-CF-160-6B-C, FR-CF-140-CL-C and FR-CF-160-CL-C support multiple and custom colors. Final color is subject to sample/order confirmation; reasonable batch variation may occur.
Standard & Heavy-Duty Brake Rotors
| SKU | Size / Type | Mount | Thickness | Weight | Service Note |
|---|---|---|---|---|---|
| SR-SP-160 | 160 mm Spiral | 6-bolt / 44 mm | 1.8 mm | 145 g | Minimum usable thickness 1.5 mm |
| SR-SP-180 | 180 mm Spiral | 6-bolt / 44 mm | 1.8 mm | 160 g | Minimum usable thickness 1.5 mm |
| SR-K-160 | 160 mm K-Type | 6-bolt / 44 mm | 1.8 mm | 135 g | Minimum usable thickness 1.5 mm |
| SR-K-180 | 180 mm K-Type | 6-bolt / 44 mm | 1.8 mm | 148 g | Minimum usable thickness 1.5 mm |
| SR-HD-160-R | 160 mm Heavy-Duty | 6-bolt / 44 mm | 2.3 mm nominal (approx. 2.25 mm actual) | 158 g | Minimum usable thickness 2.0 mm |
| SR-HD-180-R | 180 mm Heavy-Duty | 6-bolt / 44 mm | 2.3 mm nominal (approx. 2.25 mm actual) | 202 g | Minimum usable thickness 2.0 mm |
| SR-HD-203-R44 | 203 mm Heavy-Duty | 6-bolt / 44 mm | 2.3 mm nominal (approx. 2.25 mm actual) | 257 g | Minimum usable thickness 2.0 mm |
| SR-HD-203-F | 203 mm Heavy-Duty | 6-bolt / 44 mm | 2.25 mm | 249 g | 2Cr13 stainless steel |
| SR-HD-203-R54 | 203 mm Heavy-Duty | 6-bolt / 54 mm | 2.25 mm | 246 g | 54 mm mounting pattern |
| SR-HD-220-44 | 220 mm Heavy-Duty | 6-bolt / 44 mm | 2.8 mm | 395 g | 44 mm mounting pattern |
| SR-HD-220-54 | 220 mm Heavy-Duty | 6-bolt / 54 mm | 2.8 mm | 379 g | 54 mm mounting pattern |
| SR-HD-220-68 | 220 mm Heavy-Duty | 6-bolt / 68 mm | 2.8 mm | 388 g | 68 mm mounting pattern |
Quality Inspection
All QUNKE bicycle brake rotors follow a confirmed runout tolerance of ±0.1 mm and hardness standard of HRC 39 ±3 (HRC 36–42). Inspection can also include dimensions, appearance, mounting fit, packaging and buyer-specific checkpoints according to the confirmed project requirements.
Optional 6-Bolt to Center Lock Adapter
AD-6B-CL: for standard 44 mm 6-bolt rotors to Center Lock hubs. 6061 aluminum alloy; approx. 16.9 g for adapter body + cover set. Available colors include black, purple, silver, red, gold and blue. This adapter is optional and is not for 54 mm or 68 mm mounting patterns.
OEM & Customization
QUNKE can review custom rotor projects from drawings, samples, reference photos and technical specifications. Options can include rotor structure, dimensions, mounting pattern, color, marking/logo, packaging and buyer-defined inspection requirements.
Brake Rotor RFQ Checklist
- SKU or required diameter and thickness
- 6-bolt 44/54/68 mm pattern or Center Lock configuration
- Expected order quantity and destination
- Color, finish and branding requirements
- Packaging and inspection requirements
Related buyer guides: Brake Rotor RFQ Checklist · Diameter & Mounting Guide · Floating vs One-Piece Brake Rotors.
Frequently Asked Questions
What material is used for the braking track?
All confirmed QUNKE rotor braking tracks listed here use 2Cr13 stainless steel (SUS420 series).
What comes with a 6-bolt rotor?
6-bolt rotors are supplied with six hex-socket rotor bolts and an Allen key.
How are QUNKE Center Lock rotors supplied?
The dedicated lock base is pressed into the rotor body. A dedicated lock cover is supplied as an accessory.
Are 44 mm, 54 mm and 68 mm 6-bolt patterns interchangeable?
No. They are different mounting patterns. Select the rotor pattern that matches the hub/application.
Discuss Your Bicycle Brake Rotor Project
Send the required SKU or dimensions, mounting pattern, quantity and target application for review.
